BVS Wall Mount

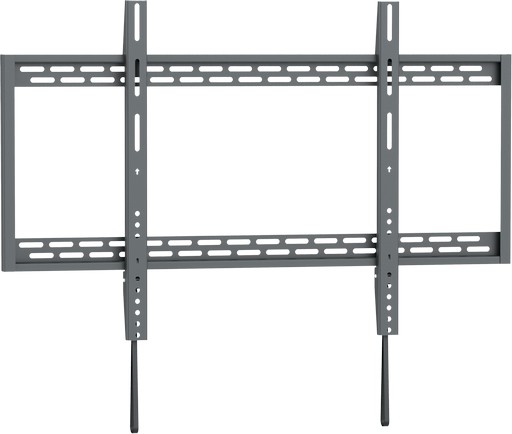

Fixed height wall mount bracket

A solid wall mount that is both sturdy and facilitates easy installation of your touch screen.

FEATURES

•  Suitable for most 50”-100” screens
•  Fit mounting patterns up to 923x610mm
•  Maximum VESA pattern: 900x600mm
•  Maximum hole pattern: 923x610mm
•  Mounting profile from wall: 32mm
•  Maximum weight capacity: 100kg/220lbs
•  Open design for easy cable and electrical access
•  Pull-down cords to enable convenient quick release

SPECIFICATIONS

  • Mount Type:  Fixed Landscape Wall Mount

  • Mounting Pattern:  Universal

  • Material:  Steel

  • Recommended Screen Size:  50″-100″

  • Weight Capacity:  100kg/220lbs

  • Load Tested:  4 times weight capacity approved

  • Maximum Hole Pattern (WxH):  923x610mm

  • Compatible VESA Patterns:  200x200mm, 400x200mm, 300x300mm, 400x400mm, 600x400mm, 800x400mm, 900X600mm

  • Maximum VESA Pattern:  800x400mm

  • Tilt:  0°

  • Swivel:  0°

  • Level Adjustment:  0°

  • Rotation:  0°

  • Profile:  32mm
